Forward Closure Assembly for a reloadable rocket motor Forward Closure Assembly

Motors - General Information for Newcomers and the Curious
When I got into the hobby of high power rocketry, reloadable motors were a big scary mystery. There was a lot of text floating around on the internet, but not a lot of visual representations. Here are some 3D cutaway renderings of a 38mm reloadable motor system (color coordinated with the page). I'll try to add some more documentation later

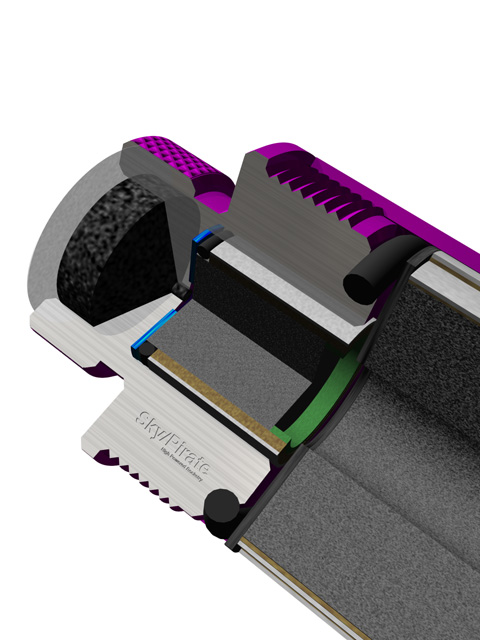

Forward Closure Assembly
Left to Right
Ejection Charge Cap (paper adhesive disc)
Forward Closure (purple)
Black Powder Charge
Rubber Seal (blue)
3/32" Delay o-ring
Delay Insulator (dark grey fiber washer)
Delay Element
Spacer (green)
1/8' Forward o-ring
Forward Insulator
Propellant Grain and liners

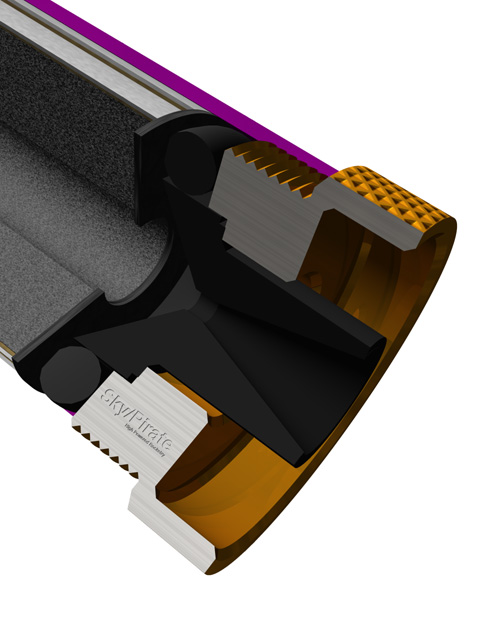

Aft Closure Assembly
Propellant Grain and liners
Aft Insulator (dark grey fiber washer)
Aft 3/16" o-ring
Aft Closure (gold color)

Aft Closure Assembly Aft Closure Assembly

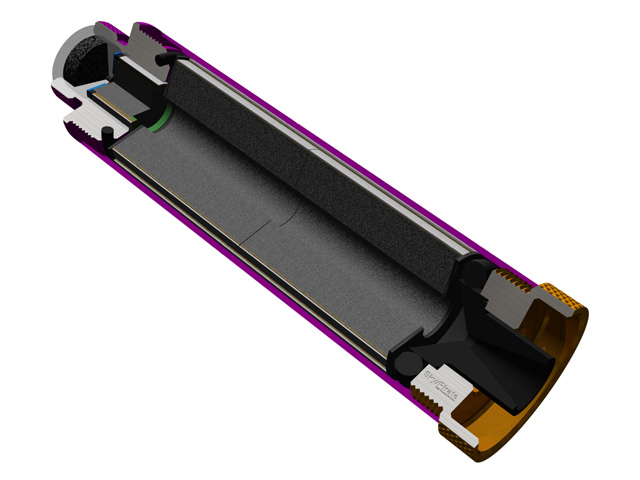

38mm reloadable motor
Completed Motor Assembly

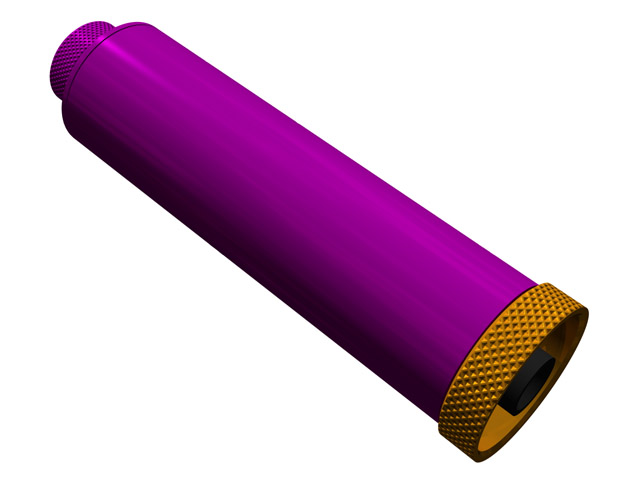

38mm reloadable motor
Exterior Motor Assembly
