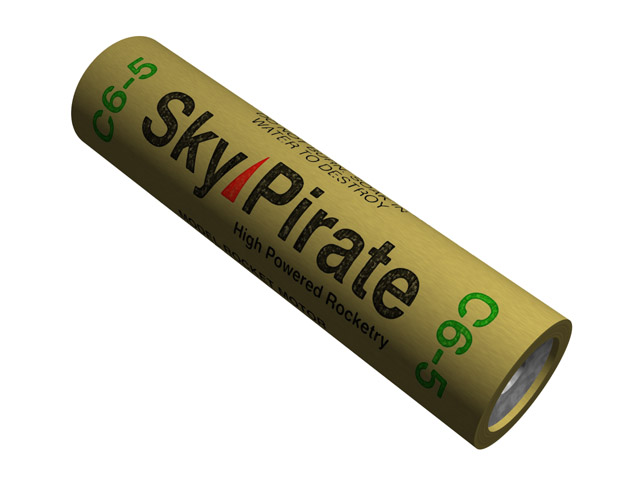

C6-5 Model Rocket motorC6-5 Model Rocket motor

Motors - General Information for Newcomers and the Curious
When I got into the hobby of high power rocketry, reloadable motors were a big scary mystery. There was a lot of text floating around on the internet, but not a lot of visual representations. Here are some 3D cutaway renderings of a C6-5 model rocket motor.

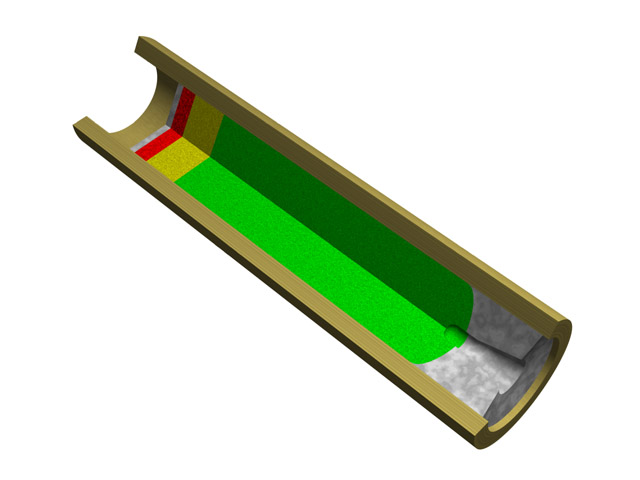

Cutaway of a C6-5 Model Rocket motorCutaway of a C6-5 Model Rocket motor

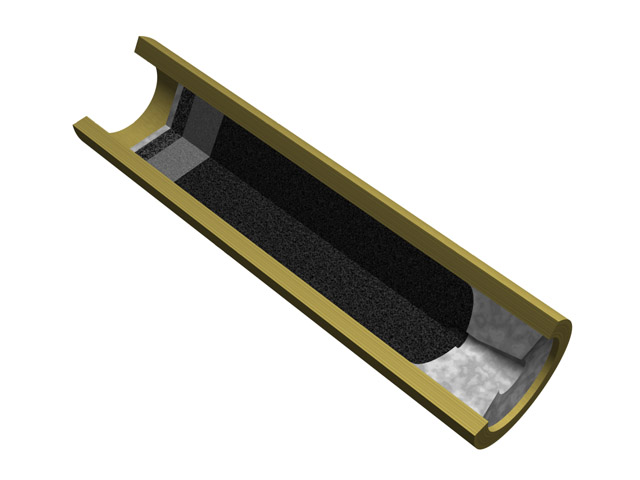

Cutaway of a C6-5 Model Rocket motor

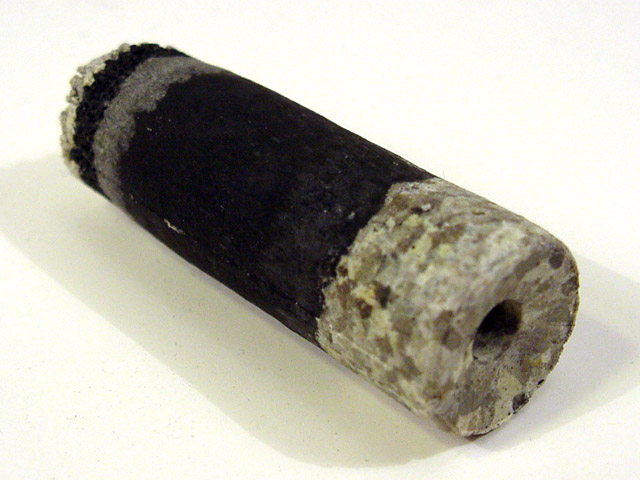

Inside an actual B6-4The inside of a real B6-4 Model Rocket Motor
